C2686A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

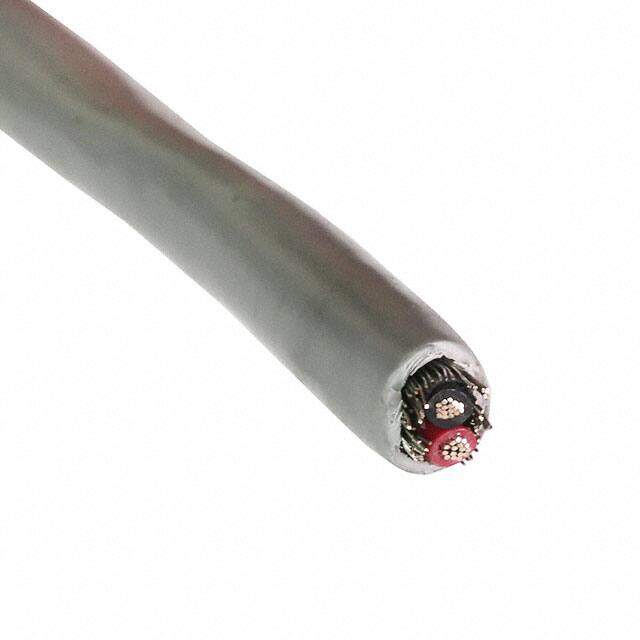

CABLE 2COND 18AWG GRAY SHLD 500'
PDF
/
Inventory: 6760
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Gray
Conductor Strand 16/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.252 (6.40mm)
Insulation Diameter 6.4008 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Braid
Shield Coverage 75%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-33
