C2528A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

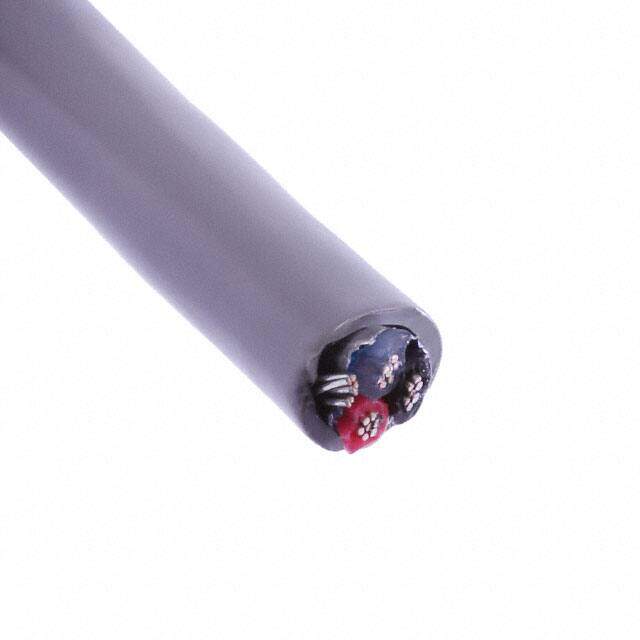

CABLE 3COND 20AWG GRAY SHLD 500'
PDF
/
Inventory: 8291
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ASTM B-33
RoHS Status RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0300 0.762mm
Length 500.0' 152.4m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polyethylene (PE)
Jacket (Insulation) Diameter 0.210 (5.33mm)
Usage Communication, Control
Conductor Strand 7/28
Jacket Color Gray
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Operating Temperature -20°C~75°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Tinned
Supply Chain
Factory Lead Time 6 Weeks
