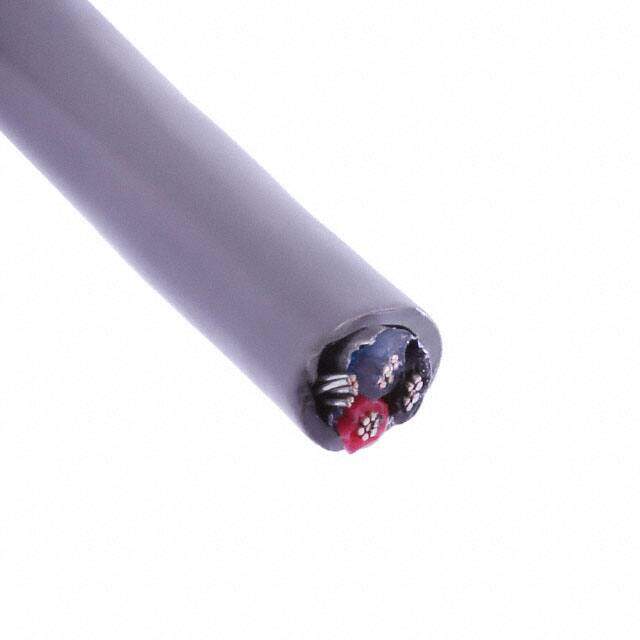

C2525A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 3COND 20AWG GRAY SHLD 500'
PDF
/
Buying Options
Total Price: USD $58.34
Unit Price: USD $58.344
≥1 USD $58.344
≥10 USD $47.73824
≥100 USD $37.12984
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
Ratings ASTM B-33
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 762μm
Jacket (Insulation) Thickness 0.0300 0.762mm
Length 500.0' 152.4m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polyethylene (PE)
Insulation Diameter 5.4102 mm
Jacket (Insulation) Diameter 0.213 (5.41mm)
Usage Communication, Control
Conductor Strand 7/28
Jacket Color Gray
Wire/Cable Gauge 20 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 3
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Tinned
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
