C2517A.21.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

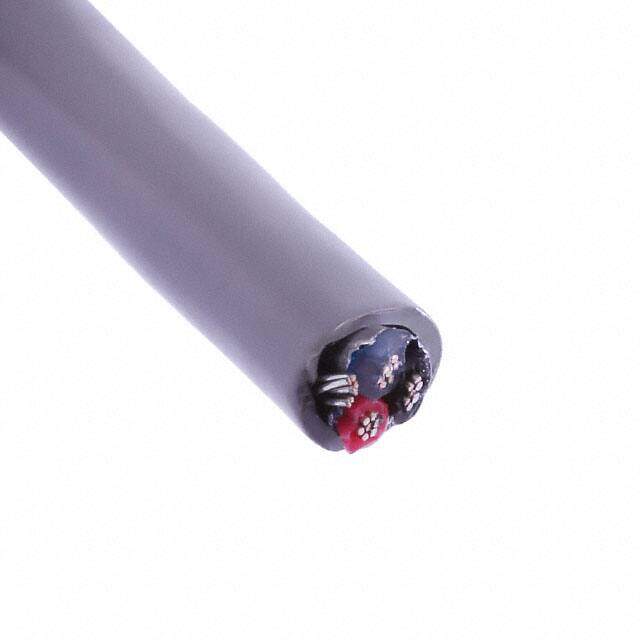

CABLE 3COND 22AWG GRY SHLD 1000'
PDF
/
Inventory: 3215
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 508μm
Jacket (Insulation) Thickness 0.0200 0.508mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Insulation Diameter 3.6576 mm
Jacket (Insulation) Diameter 0.144 (3.66mm)
Usage Communication, Control
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 3
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable
