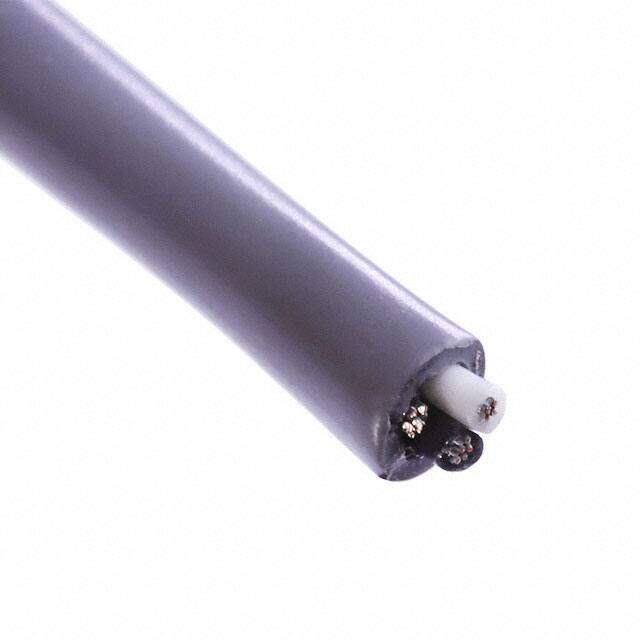

C2516A.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description
2C/22 7/30TC OA SH TYPE CM 1000'
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.600151
≥1 USD $0.600151
≥10 USD $0.561431
≥100 USD $0.534336
≥500 USD $0.507232
Inventory: 4067
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~75°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.137 (3.48mm)
Insulation Diameter 3.4798 mm
Conductor Insulation Polypropylene (PP)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0200 0.508mm
Insulation Thickness 508μm
Compliance
RoHS Status RoHS Compliant
