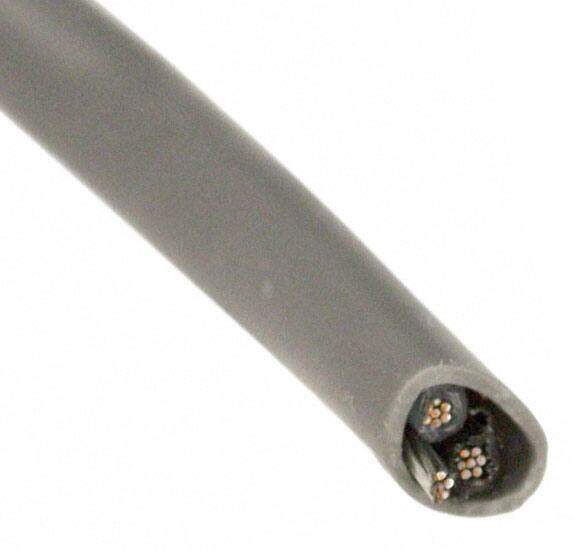

C2514A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 2COND 22AWG GRAY SHLD 500'
PDF
/
Buying Options
Total Price: USD $161.49
Unit Price: USD $161.4888
≥1 USD $161.4888
≥10 USD $149.39467
≥100 USD $144.2144
≥500 USD $140.759775
≥1000 USD $137.30552
≥3000 USD $128.67008
Inventory: 80
Minimum: 1
-
+
Technical Details
Compliance
Ratings ASTM B-33
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Insulation Thickness 508μm
Jacket (Insulation) Thickness 0.0200 0.508mm
Length 500.0' 152.4m
Technical
Outside Diameter 4.242 mm
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polyethylene (PE)
Insulation Diameter 4.2418 mm
Jacket (Insulation) Diameter 0.167 (4.24mm)
Usage Communication, Control
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 2
Voltage - Rated DC 300V
Voltage - Rated 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Tinned
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
