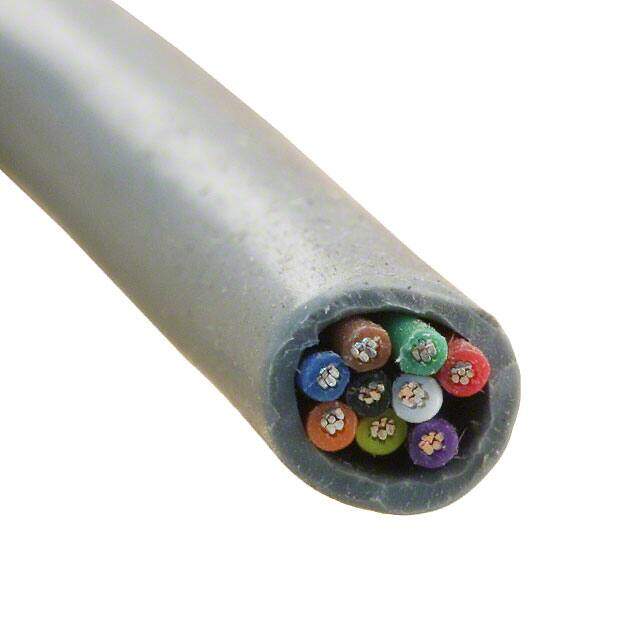

C2470A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 9COND 24AWG GRAY 500'
PDF
/
Inventory: 2265
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~80°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Voltage - Rated 300V
Voltage - Rated DC 300V
Number of Conductors 9
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 24 AWG
Jacket Color Gray
Conductor Strand 7/32
Usage Communication, Control
Jacket (Insulation) Diameter 0.227 (5.77mm)
Insulation Diameter 5.7658 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Outside Diameter 5.77 mm
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
