C2424A.41.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

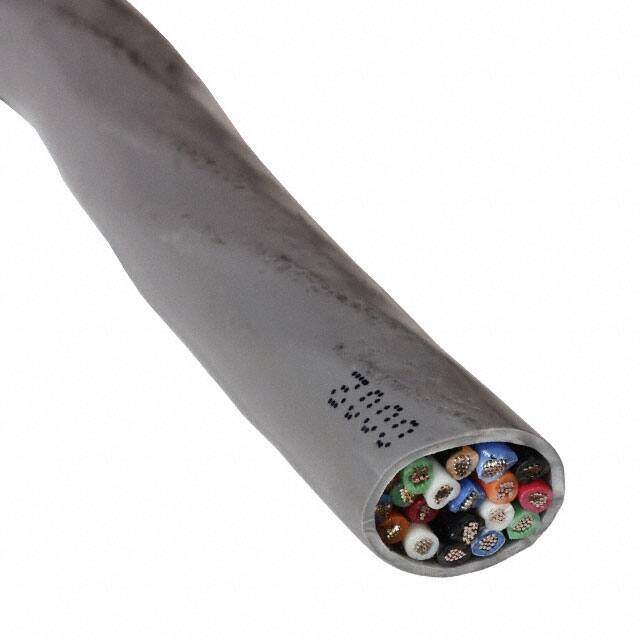

CABLE 19COND 18AWG GRAY 1000
PDF
/
Buying Options
Total Price: USD $387.95
Unit Price: USD $387.948
≥1 USD $387.948
≥10 USD $317.41248
≥100 USD $246.87696
Inventory: 50
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 19
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Gray
Conductor Strand 16/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.469 (11.91mm)
Insulation Diameter 11.9126 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings ASTM B-33
