C2420A.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

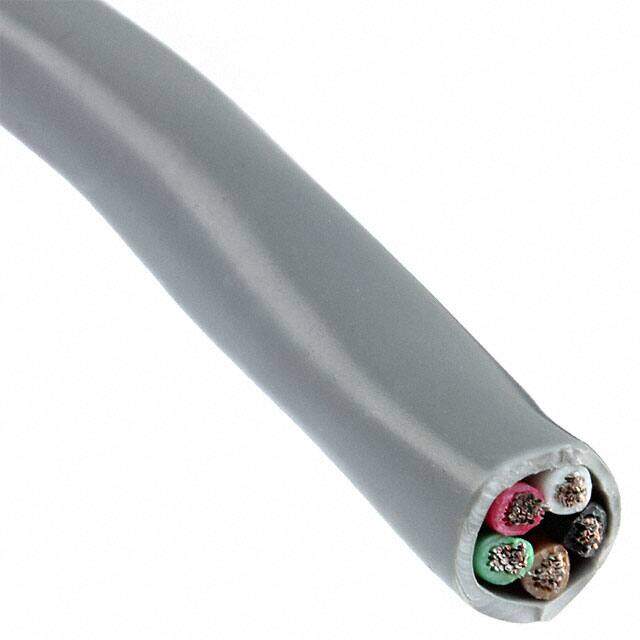

CABLE 5COND 18AWG GRAY 1000
PDF
/
Buying Options
Total Price: USD $173.41
Unit Price: USD $173.4128
≥1 USD $173.4128
≥10 USD $141.88592
≥100 USD $110.35552
Inventory: 21
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Outside Diameter 7.11 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 7.112 mm
Jacket (Insulation) Diameter 0.280 (7.11mm)
Usage Communication, Control
Conductor Strand 16/30
Jacket Color Gray
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 5
Voltage - Rated DC 300V
Voltage - Rated 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
