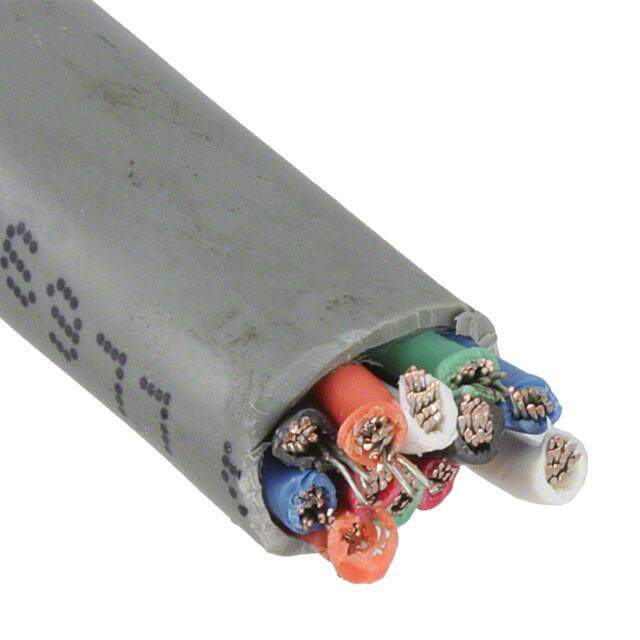

C2412A.38.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 12COND 18AWG GRAY 500'
PDF
/
Inventory: 6547
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 500.0' 152.4m
Technical
Outside Diameter 10.19 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 10.1854 mm
Jacket (Insulation) Diameter 0.401 (10.19mm)
Usage Communication, Control
Conductor Strand 16/30
Jacket Color Gray
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 12
Voltage - Rated DC 300V
Voltage - Rated 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable
