C2409A.38.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

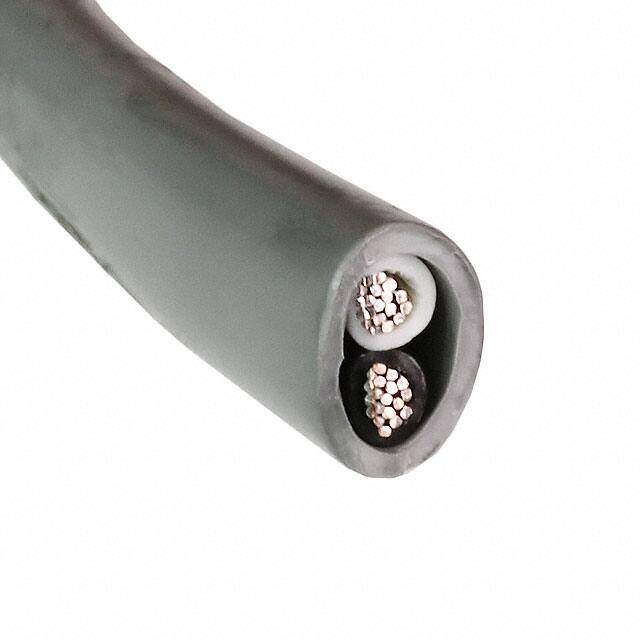

CABLE 2COND 14AWG GRAY 500'
PDF
/
Inventory: 2178
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~90°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 90°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 14 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 14 AWG
Jacket Color Gray
Conductor Strand 19/0.0147
Usage Communication, Control
Jacket (Insulation) Diameter 0.335 (8.51mm)
Insulation Diameter 8.509 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
