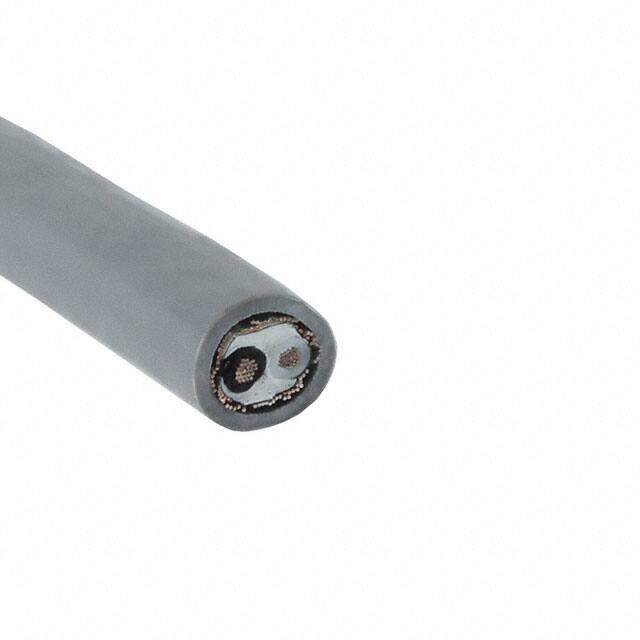

C1642A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 2COND 20AWG GRAY SHLD 500'
PDF
/
Inventory: 9434
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Technical
Operating Temperature -20°C~75°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 20 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 20 AWG
Jacket Color Gray
Conductor Strand 26/34
Usage Communication, Control
Jacket (Insulation) Diameter 0.226 (5.74mm)
Insulation Diameter 5.7404 mm
Conductor Insulation Polyethylene (PE)
Shield Type Braid
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0290 0.737mm
Insulation Thickness 736.6μm
Compliance
RoHS Status RoHS Compliant
