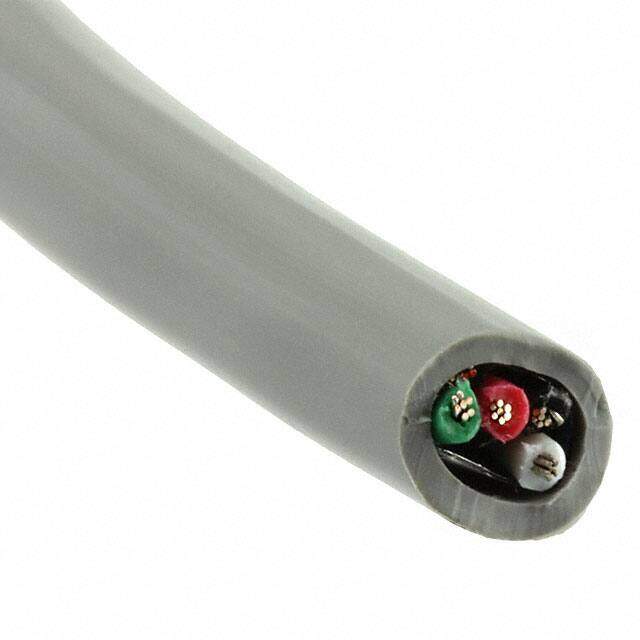

C1353A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 4COND 22AWG SHLD 500'
PDF
/
Inventory: 5405
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Pair
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.208 (5.28mm)
Insulation Diameter 5.2832 mm
Conductor Insulation Polypropylene (PP)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0280 0.711mm
Insulation Thickness 711.2μm
Compliance
RoHS Status RoHS Compliant
