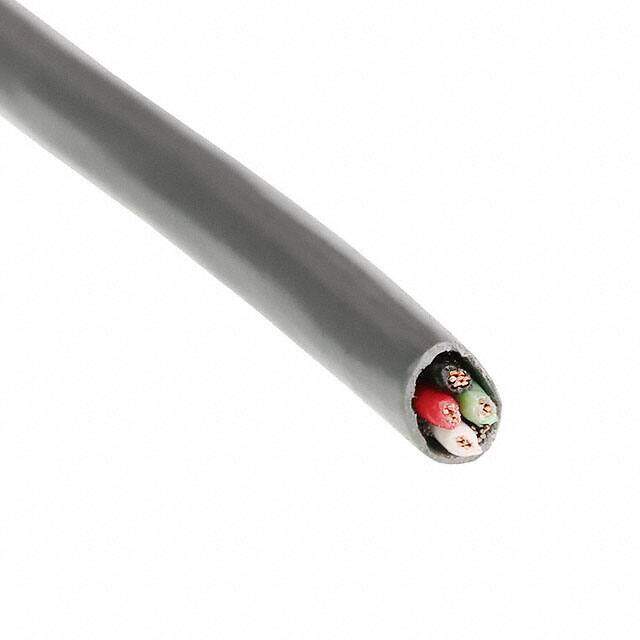

C1343A.41.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
Cable,composite;1pr 20AWG shld,1pr 18AWG no shld;PE Ins;Gray PVC jkt;UL 2094
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Voltage - Rated 300V
Number of Conductors 4
Wire Gauge 20 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 20 AWG
Jacket Color Gray
Conductor Strand 7/28; 16/30
Usage Audio-Video, Home
Jacket (Insulation) Diameter 0.206 (5.23mm)
Insulation Diameter 5.2324 mm
Conductor Insulation Polyethylene (PE)
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
