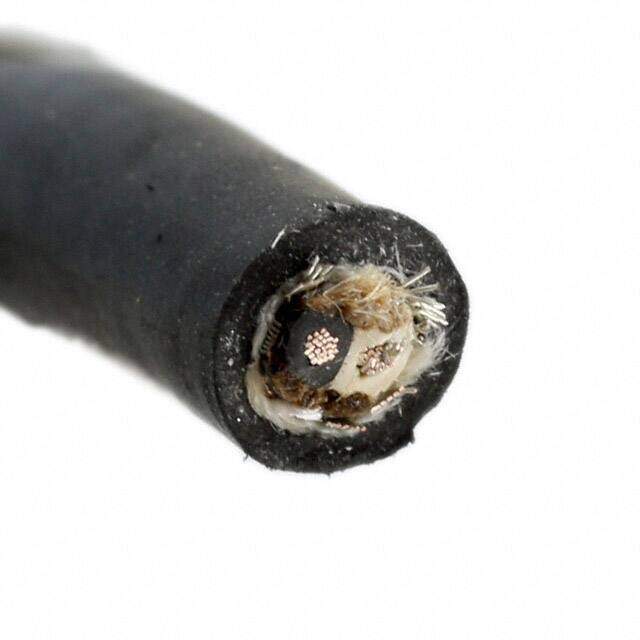

C1302.44.01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 2COND 20AWG BLK SHLD 2500'
PDF
/
Inventory: 5644
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 508μm
Jacket (Insulation) Thickness 0.0350 0.889mm
Length 2500' 762.0m
Technical
Shield Coverage 80%
Shield Type Braid
Conductor Insulation Rubber
Insulation Diameter 6.858 mm
Jacket (Insulation) Diameter 0.270 (6.86mm)
Usage Communication, Control
Conductor Strand 26/34
Jacket Color Black
Wire/Cable Gauge 20 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 2
Color Black
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -20°C~60°C
Physical
Shield Material Copper, Tinned
Jacket (Insulation) Material Rubber
Conductor Material Copper, Tinned
Insulation Material Rubber
Mount Cable
