C0976A.41.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

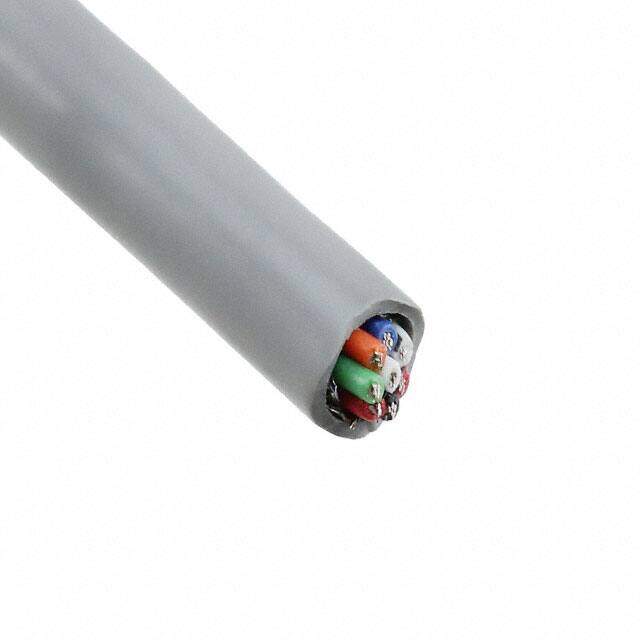

CABLE 8COND 22AWG GRY SHLD 1000'
PDF
/
Buying Options
Total Price: USD $1489.19
Unit Price: USD $1489.1888
≥1 USD $1489.1888
≥10 USD $1377.69573
≥100 USD $1329.91408
Inventory: 51
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%, 65%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 6.5278 mm
Jacket (Insulation) Diameter 0.257 (6.53mm)
Usage Computer
Conductor Strand 7/30
Jacket Color Gray
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Number of Conductors 8
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Shield Material Flexfoil?, Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
