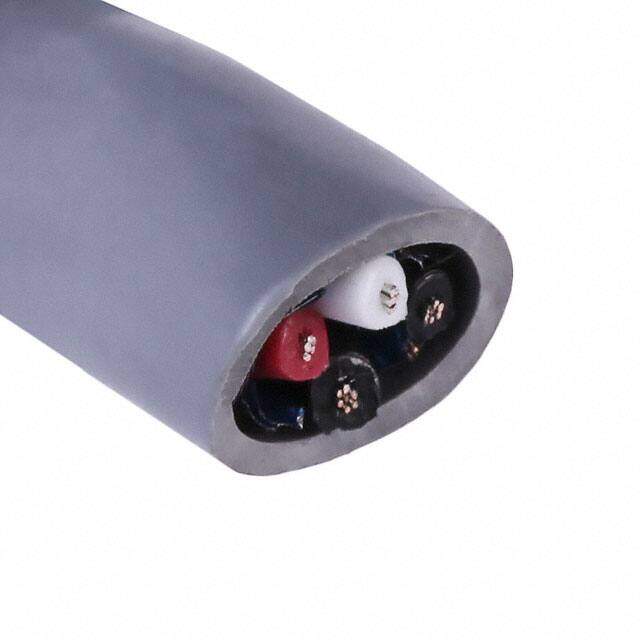

C0842A.38.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 4COND 24AWG SHLD 500'
PDF
/
Inventory: 4184
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?, Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Feature Low Capacitance
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 24 AWG
Voltage 30V
Cable Type Multi-Pair
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 24 AWG
Jacket Color Gray
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.304 (7.72mm)
Insulation Diameter 7.7216 mm
Conductor Insulation Polyethylene (PE)
Shield Type Foil, Braid
Shield Coverage 100%, 90%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-33
