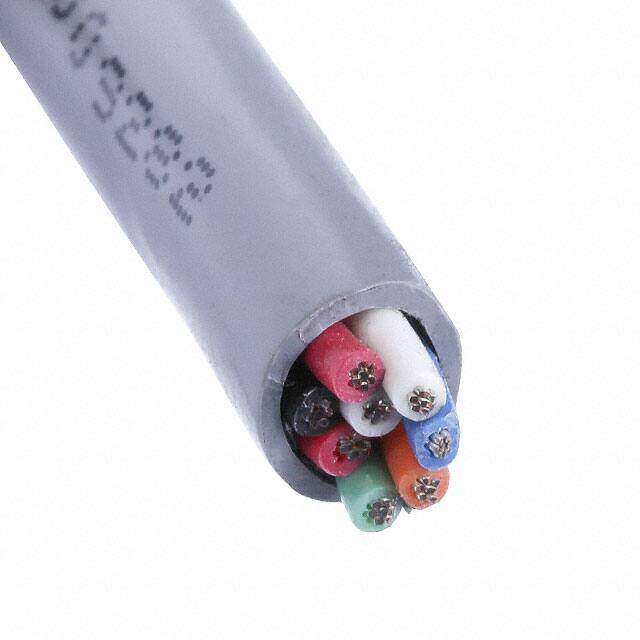

C0784A.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 8COND 20AWG SHIELD 1000'
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.253894
≥1 USD $1.253894
≥10 USD $1.178162
≥100 USD $1.119254
Inventory: 4035
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Voltage - Rated 300V
Voltage - Rated DC 300V
Number of Conductors 8
Wire Gauge 20 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 20 AWG
Jacket Color Gray
Conductor Strand 7/28
Usage Computer
Jacket (Insulation) Diameter 0.297 (7.54mm)
Insulation Diameter 7.5438 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Outside Diameter 7.544 mm
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings ASTM B-33
