C0760A.41.10
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

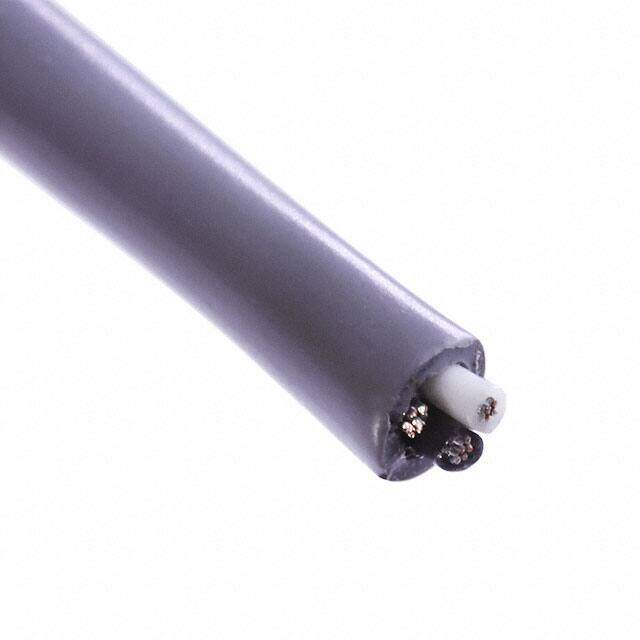

CABLE 2COND 22AWG SHIELD 1000'
PDF
/
Buying Options
Total Price: USD $69.99
Unit Price: USD $69.9864
≥1 USD $69.9864
≥10 USD $57.25984
≥100 USD $44.53504
Inventory: 54
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Computer
Jacket (Insulation) Diameter 0.169 (4.29mm)
Insulation Diameter 4.2926 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 254μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-33
