C0742A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

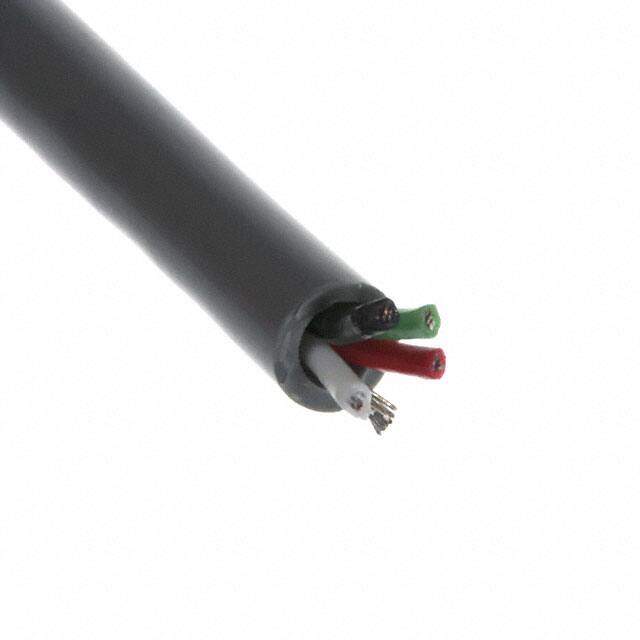

CABLE 4COND 24AWG GRAY SHLD 500'
PDF
/
Buying Options
Total Price: USD $216.89
Unit Price: USD $216.8936
≥1 USD $216.8936
≥10 USD $200.65173
≥100 USD $193.69328
≥500 USD $189.054175
≥1000 USD $184.41456
≥3000 USD $172.81616
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~80°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 4
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 24 AWG
Jacket Color Gray
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.175 (4.45mm)
Insulation Diameter 4.445 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
