C0681A.41.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

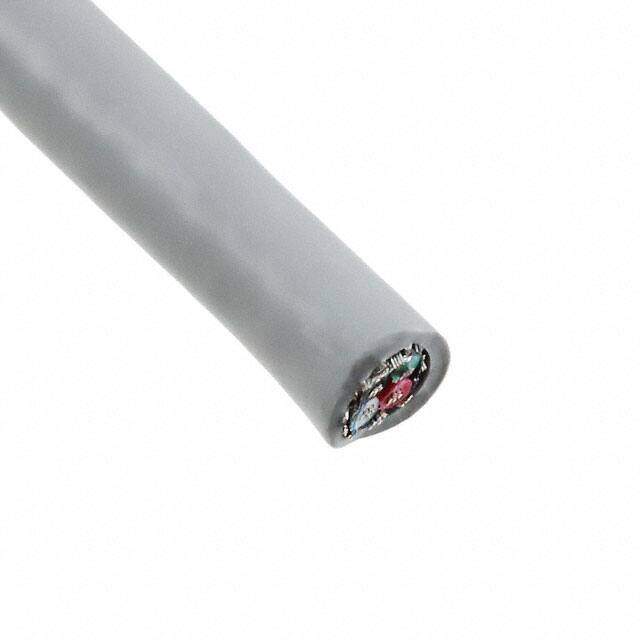

CABLE 4COND 24AWG GRY SHLD 1000'
PDF
/
Buying Options
Total Price: USD $77.4
Unit Price: USD $77.4048
≥1 USD $77.4048
≥10 USD $63.32832
≥100 USD $49.25536
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?, Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 4
Wire Gauge 24 AWG
Voltage 30V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 24 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Computer
Jacket (Insulation) Diameter 0.227 (5.77mm)
Insulation Diameter 5.7658 mm
Conductor Insulation Polypropylene (PP)
Shield Type Foil, Braid
Shield Coverage 100%, 70%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
Ratings UL Style 2919
