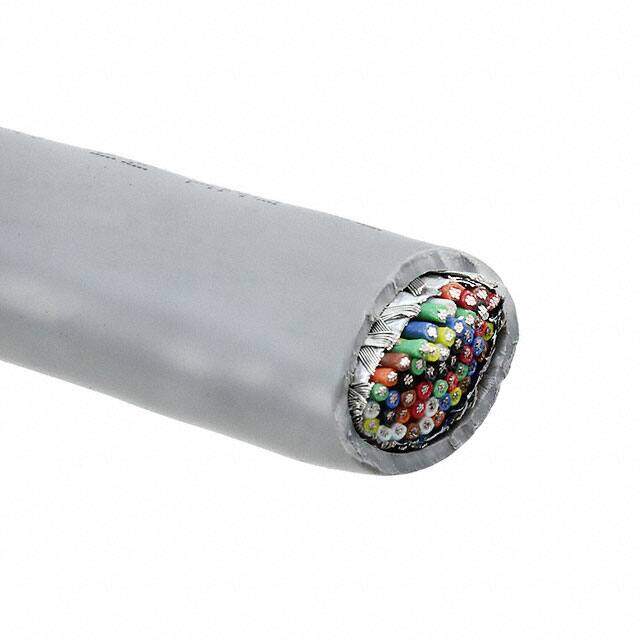

C0663A.38.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 50COND 22AWG GRY 500'
PDF
/
Inventory: 3569
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?, Copper, Tinned
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 50 (25 Pair Twisted)
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Pair
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Computer
Jacket (Insulation) Diameter 0.620 (15.75mm)
Insulation Diameter 15.748 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-33
