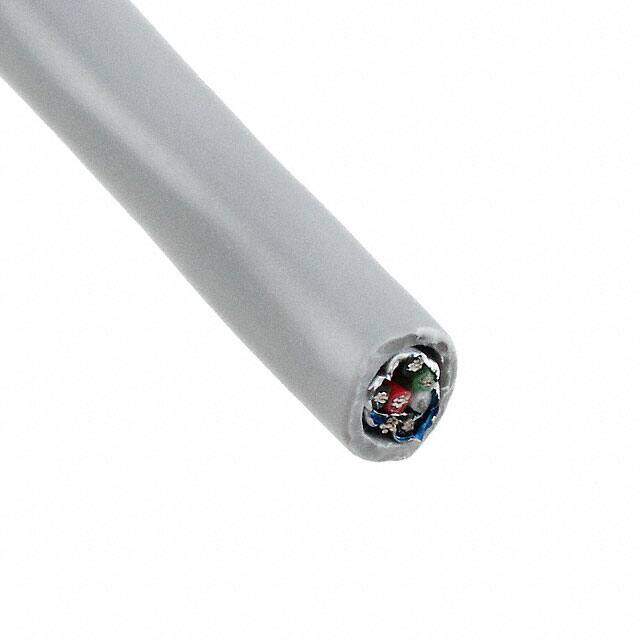

C0602A.50.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 6COND 24AWG GRY 3281'
PDF
/
Inventory: 2092
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ASTM B-33
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 3281' 1000.0m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 5.715 mm
Jacket (Insulation) Diameter 0.225 (5.72mm)
Usage Computer
Conductor Strand 7/32
Jacket Color Gray
Wire/Cable Gauge 24 AWG
Wire/Cable Type Multi-Pair
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 6 (3 Pair Twisted)
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Packaging Spool
Operating Temperature -20°C~80°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Tinned
Insulation Material PVC
