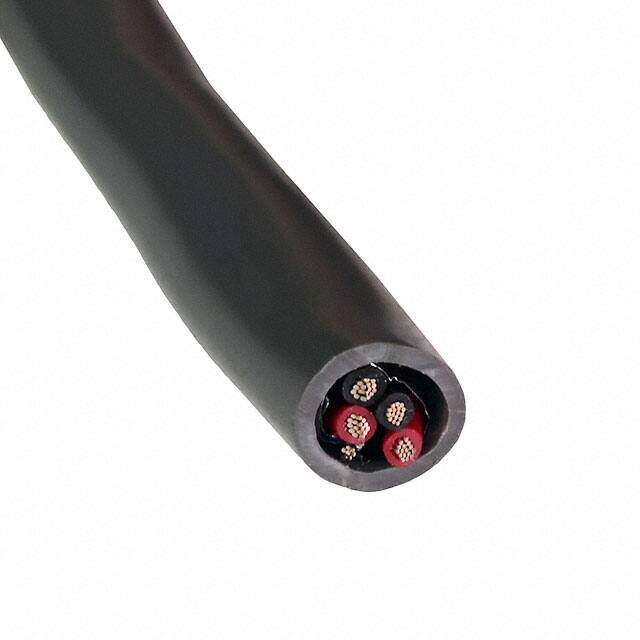

C0560A.38.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 2COND 18AWG GRAY SHLD 500'
PDF
/
Inventory: 7228
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?, Copper, Tinned
Technical
Operating Temperature -20°C~105°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Color Grey
Voltage - Rated 300V
Voltage - Rated DC 300V
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Pair
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 18 AWG
Jacket Color Gray
Conductor Strand 16/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.314 (7.98mm)
Insulation Diameter 7.9756 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Outside Diameter 7.976 mm
Number of Pairs 2
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0420 1.067mm
Insulation Thickness 1.0668mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings ASTM B-33
