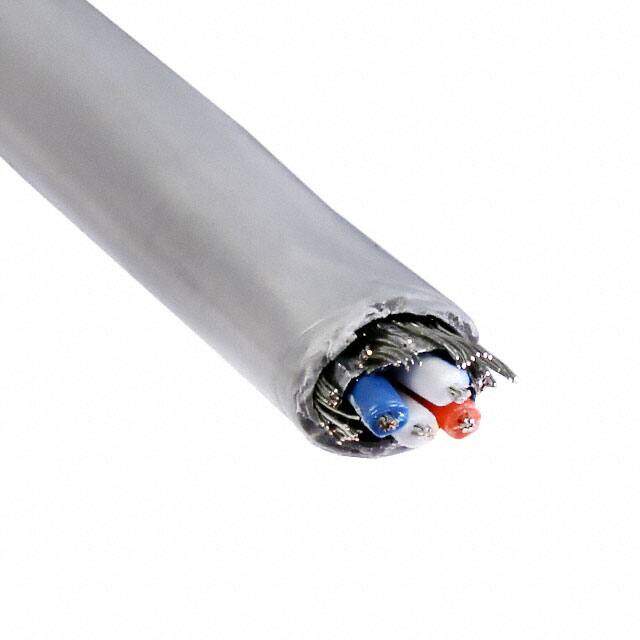

C0515A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 4COND 24AWG SHLD 500'
PDF
/
Inventory: 8154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings UL Style 2919
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 500.0' 152.4m
Technical
Shield Coverage 100%, 65%
Shield Type Foil, Braid
Conductor Insulation Polypropylene (PP)
Insulation Diameter 7.0104 mm
Jacket (Insulation) Diameter 0.276 (7.01mm)
Usage Computer
Conductor Strand 7/32
Jacket Color Gray
Wire/Cable Gauge 24 AWG
Wire/Cable Type Multi-Pair
Cable Type Multi-Pair
Voltage 30V
Wire Gauge 24 AWG
Number of Conductors 4 (2 Pair Twisted)
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Low Capacitance
Operating Temperature -20°C~80°C
Physical
Shield Material Flexfoil?, Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Tinned
Insulation Material PVC
Mount Cable
