C0474.18.03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

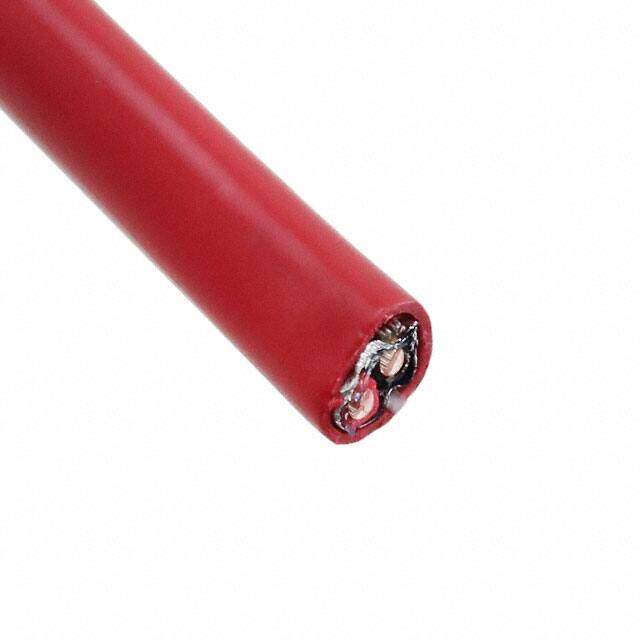

CABLE 2COND 16AWG RED SHLD 500'
PDF
/
Inventory: 934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature 0°C~60°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 60°C
Min Operating Temperature 0°C
Color Red
Number of Conductors 2
Wire Gauge 16 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 16 AWG
Jacket Color Red
Conductor Strand Solid
Usage Alarm, Safety
Jacket (Insulation) Diameter 0.214 (5.44mm)
Insulation Diameter 5.4356 mm
Conductor Insulation Polypropylene (PP)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0200 0.508mm
Insulation Thickness 508μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-3
