C0472.46.03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

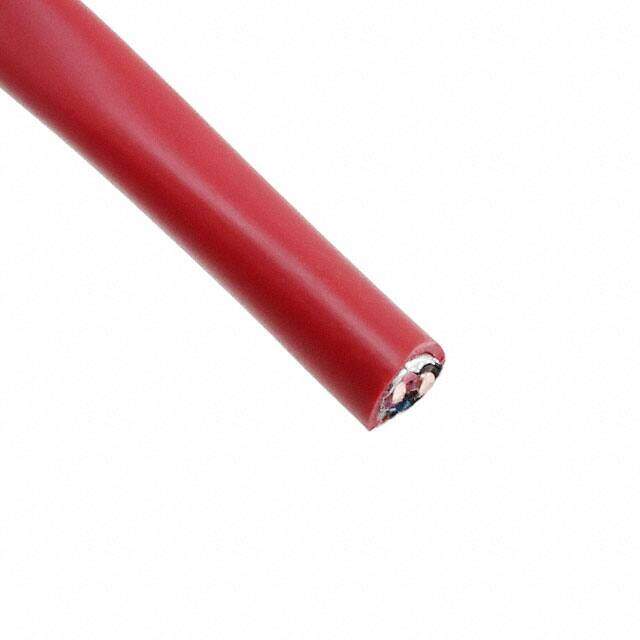

CABLE 2COND 18AWG RED 5000'
PDF
/
Inventory: 2121
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ASTM B-3
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 508μm
Jacket (Insulation) Thickness 0.0200 0.508mm
Length 5000' 1524.0m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Insulation Diameter 4.6228 mm
Jacket (Insulation) Diameter 0.182 (4.62mm)
Usage Alarm, Safety
Conductor Strand Solid
Jacket Color Red
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 2
Color Red
Min Operating Temperature 0°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Operating Temperature 0°C~60°C
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Bare
Insulation Material PVC
Mount Cable
