C0456A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

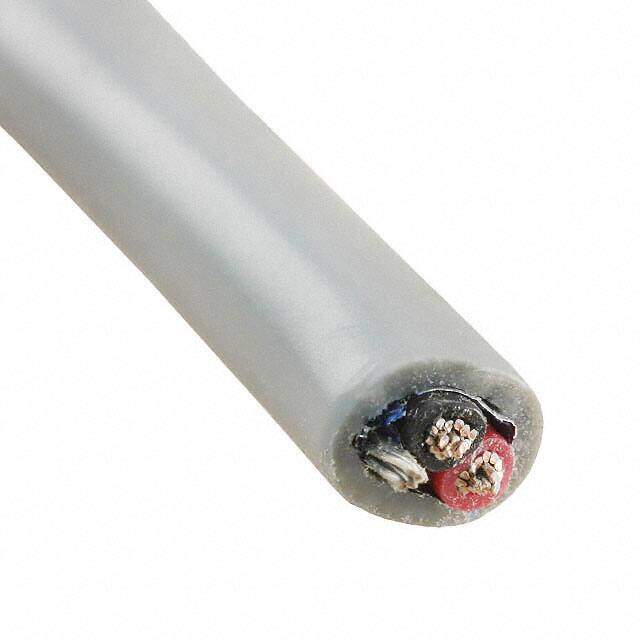

CABLE 2COND 16AWG GRAY SHLD 500'
PDF
/
Inventory: 1667
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~105°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 105°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Approval Agency UL
Wire Gauge 16 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Cable Length 152.4m
Wire/Cable Gauge 16 AWG
Jacket Color Gray
Conductor Strand 19/0.0117
Usage Communication, Control
Jacket (Insulation) Diameter 0.243 (6.17mm)
Insulation Diameter 6.1722 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0370 0.940mm
Insulation Thickness 939.8μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-33
