7131866
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

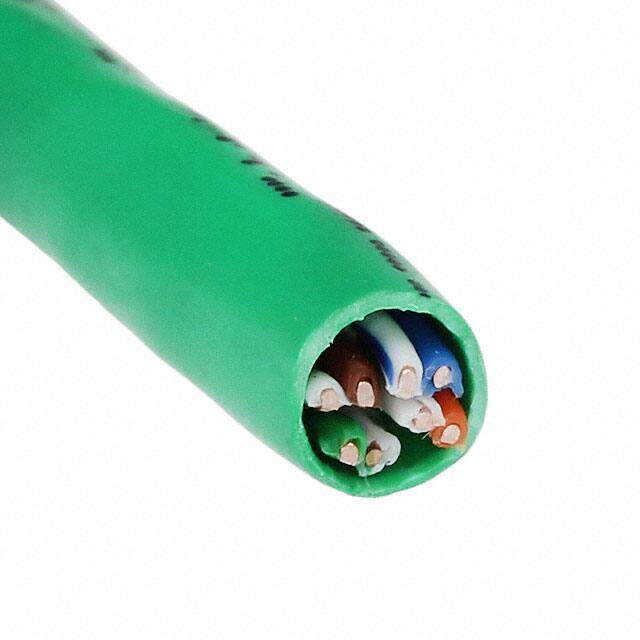

CABLE CAT6 8COND 23AWG GRN 1000'
PDF
/
Inventory: 3517
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 1000.0' 304.8m
Technical
Conductor Insulation Fluoropolymer
Insulation Diameter 5.08 mm
Jacket (Insulation) Diameter 0.200 (5.08mm)
Conductor Strand Solid
Jacket Color Green
Wire/Cable Gauge 23 AWG
Wire/Cable Type Multi-Pair
Cable Type Multi-Pair, Cat6
Wire Gauge 23 AWG
Number of Conductors 8 (4 Pair Twisted)
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Rip Cord
Series GenSPEED? 6
Packaging Spool
Operating Temperature -20°C~75°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Conductor Material Copper, Bare
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
