7131860
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

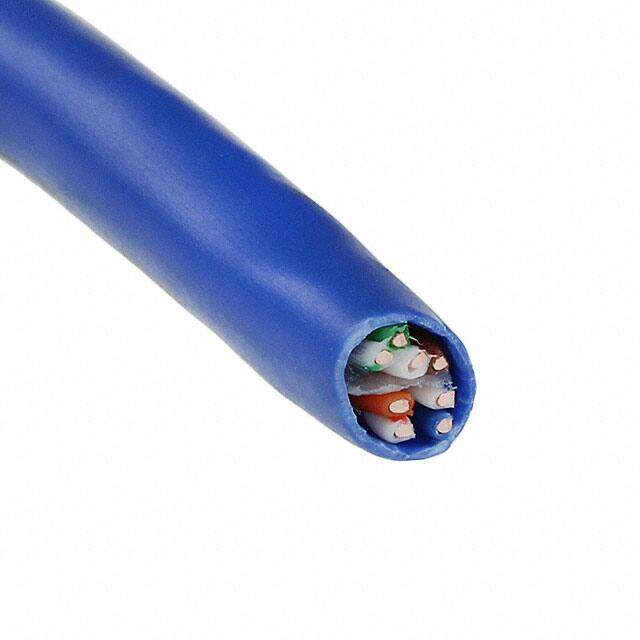

CABLE CAT6 8COND 23AWG BLU 1000'
PDF
/
Inventory: 2183
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Technical
Operating Temperature -20°C~75°C
Packaging Spool
Series GenSPEED? 6
Feature Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Color Blue
Number of Conductors 8 (4 Pair Twisted)
Wire Gauge 23 AWG
Cable Type Multi-Pair, Cat6
Wire/Cable Type Multi-Pair
Wire/Cable Gauge 23 AWG
Jacket Color Blue
Conductor Strand Solid
Jacket (Insulation) Diameter 0.200 (5.08mm)
Insulation Diameter 5.08 mm
Conductor Insulation Fluoropolymer
Dimensions
Length 1000.0' 304.8m
Compliance
RoHS Status RoHS Compliant
