09816.99.01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

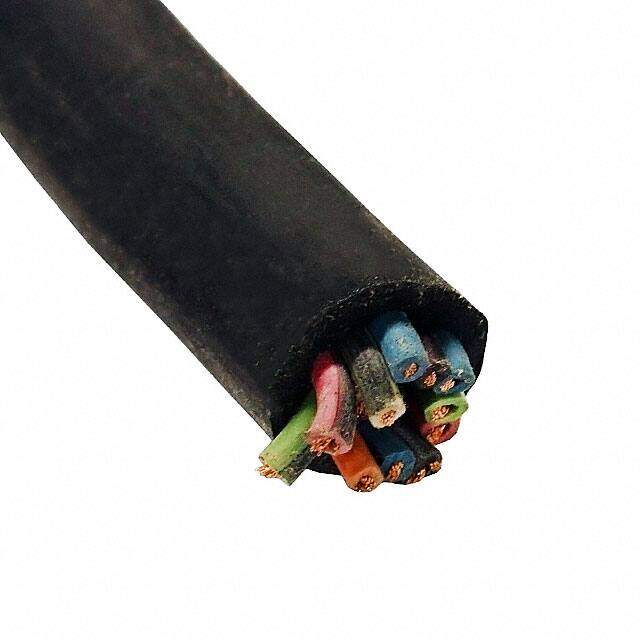

CABLE 16COND 18AWG BLACK 1=1FT
PDF
/
Inventory: 7444
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Conductor Material Copper, Bare
Jacket (Insulation) Material Super Vu-Tron?
Technical
Operating Temperature -40°C~90°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 90°C
Min Operating Temperature -40°C
Color Black
Number of Conductors 16
Approval Agency CSA, UL
Wire Gauge 18 AWG
Voltage 600V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Black
Conductor Strand 16/30
Jacket (Insulation) Diameter 0.700 (17.78mm)
Insulation Diameter 17.78 mm
Conductor Insulation Ethylene Propylene Terpolymer Rubber (EPDM)
Dimensions
Length 304.8m
Jacket (Insulation) Thickness 0.0300 0.762mm
Insulation Thickness 762μm
Compliance
RoHS Status RoHS Compliant
