09416.52.01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

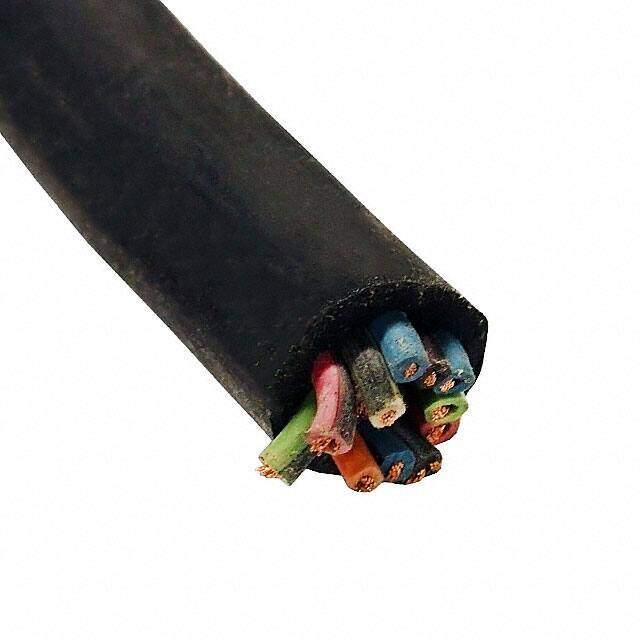

CABLE 16COND 14AWG BLACK 3000'
PDF
/
Inventory: 1572
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Conductor Material Copper, Bare
Jacket (Insulation) Material Super Vu-Tron?
Technical
Operating Temperature -40°C~90°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 90°C
Min Operating Temperature -40°C
Color Black
Number of Conductors 16
Wire Gauge 14 AWG
Voltage 600V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 14 AWG
Jacket Color Black
Conductor Strand 41/30
Jacket (Insulation) Diameter 1.030 (26.16mm)
Insulation Diameter 26.162 mm
Conductor Insulation Ethylene Propylene Terpolymer Rubber (EPDM)
Dimensions
Length 3000' 914.4m
Jacket (Insulation) Thickness 0.0450 1.143mm
Insulation Thickness 1.143mm
Compliance
RoHS Status RoHS Compliant
