05585.R5.02
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

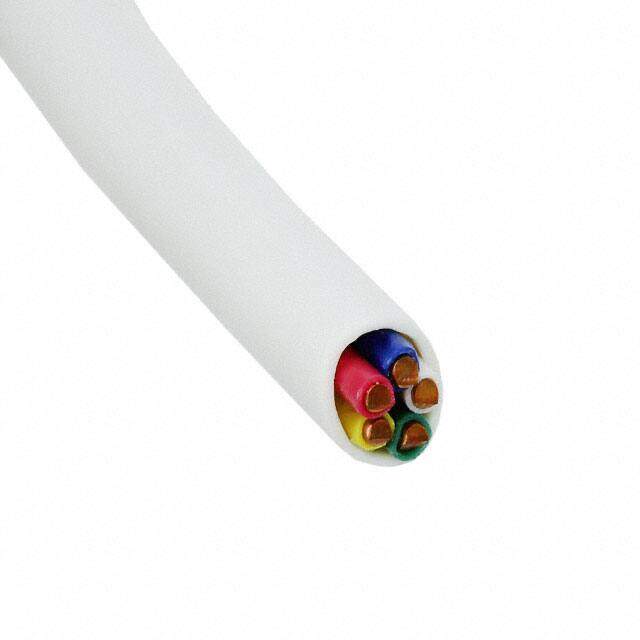

WIRE THERM 5COND 18AWG CL2 250'
PDF
/
Buying Options
Total Price: USD $45.98
Unit Price: USD $45.9844
≥1 USD $45.9844
≥10 USD $37.6244
≥100 USD $29.26352
Inventory: 31
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 203.2μm
Jacket (Insulation) Thickness 0.0080 0.203mm
Length 250.0' 76.2m
Technical
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 4.0132 mm
Jacket (Insulation) Diameter 0.158 (4.01mm)
Usage Thermostat
Conductor Strand Solid
Jacket Color White
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 150V
Wire Gauge 18 AWG
Number of Conductors 5
Color White
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Spool
Operating Temperature -20°C~60°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Bare
Insulation Material PVC
Package / Case 100
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
