01380.35.01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

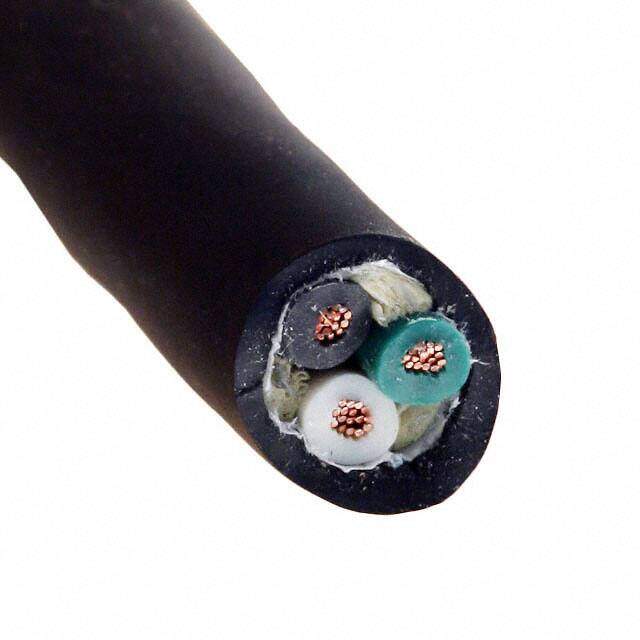

CABLE 3COND 12AWG BLACK 250'
PDF
/
Inventory: 2970
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 762μm
Jacket (Insulation) Thickness 0.0300 0.762mm
Length 250.0' 76.2m
Technical
Conductor Insulation Ethylene Propylene Terpolymer Rubber (EPDM)
Insulation Diameter 10.922 mm
Jacket (Insulation) Diameter 0.430 (10.92mm)
Usage Cord and Cordset
Conductor Strand 65/30
Jacket Color Black
Wire/Cable Gauge 12 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 12 AWG
Number of Conductors 3
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 90°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Spool
Operating Temperature -40°C~90°C
Physical
Jacket (Insulation) Material Carolprene
Conductor Material Copper, Bare
