01360.41T.01
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Cables, Wires / Multiple Conductor Cables
Description

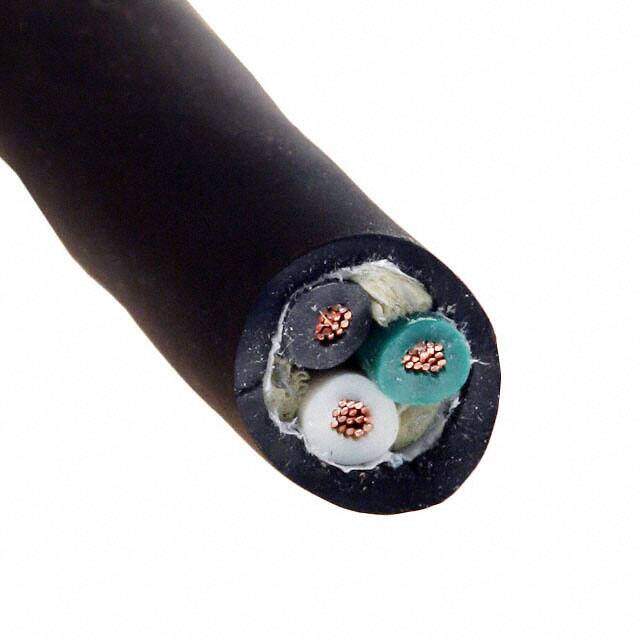

CABLE 3COND 14AWG BLACK 1000'
PDF
/
Buying Options
Total Price: USD $330.7
Unit Price: USD $330.704
≥1 USD $330.704
≥10 USD $293.96224
≥100 USD $266.40328
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Conductor Material Copper, Bare
Jacket (Insulation) Material Carolprene
Technical
Operating Temperature -40°C~90°C
Packaging Spool
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 90°C
Min Operating Temperature -40°C
Color Black
Number of Conductors 3
Wire Gauge 14 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 14 AWG
Jacket Color Black
Conductor Strand 41/30
Jacket (Insulation) Diameter 0.370 (9.40mm)
Insulation Diameter 9.398 mm
Conductor Insulation Ethylene Propylene Terpolymer Rubber (EPDM)
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0300 0.762mm
Insulation Thickness 762μm
Compliance
RoHS Status RoHS Compliant
