01344.99.01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

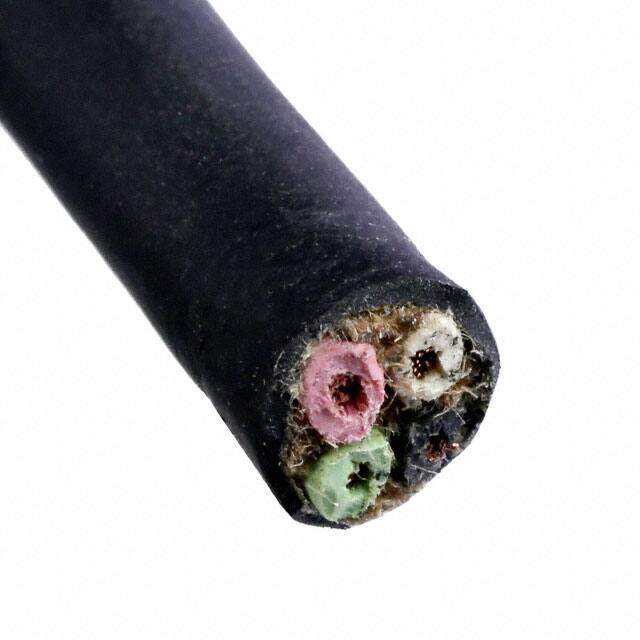

CABLE 4COND 18AWG BLACK 1=1FT
PDF
/
Inventory: 9636
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Insulation Thickness 762μm
Jacket (Insulation) Thickness 0.0300 0.762mm
Technical
Conductor Insulation Ethylene Propylene Terpolymer Rubber (EPDM)
Insulation Diameter 8.382 mm
Jacket (Insulation) Diameter 0.330 (8.38mm)
Conductor Strand 16/30
Jacket Color Black
Wire/Cable Gauge 18 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 18 AWG
Number of Conductors 4
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 90°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -40°C~90°C
Physical
Jacket (Insulation) Material Carolprene
Conductor Material Copper, Bare
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
