01303.41.01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

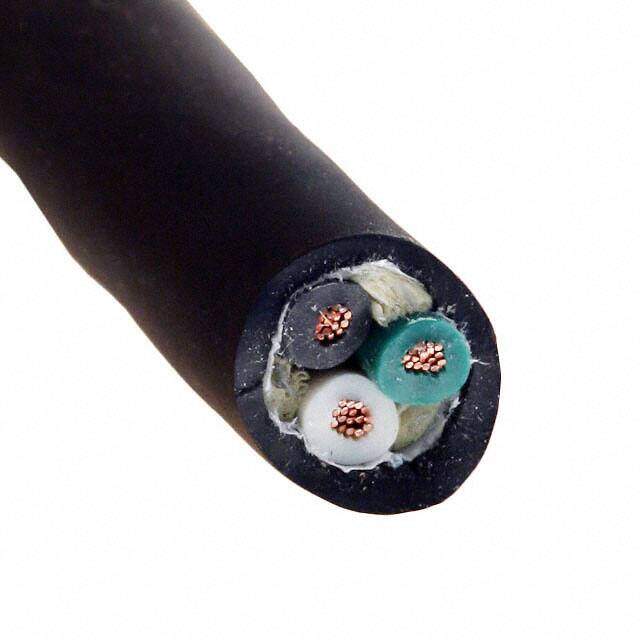

CABLE 3COND 18AWG BLACK 1000'
PDF
/
Inventory: 6194
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material Rubber
Conductor Material Copper, Bare
Jacket (Insulation) Material Rubber
Technical
Operating Temperature -40°C~60°C
Packaging Spool
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 60°C
Min Operating Temperature -40°C
Color Black
Number of Conductors 3
Wire Gauge 18 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Black
Conductor Strand 16/30
Jacket (Insulation) Diameter 0.305 (7.75mm)
Insulation Diameter 7.747 mm
Conductor Insulation Ethylene Propylene Terpolymer Rubber (EPDM)
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0300 0.762mm
Insulation Thickness 762μm
Compliance
RoHS Status RoHS Compliant
