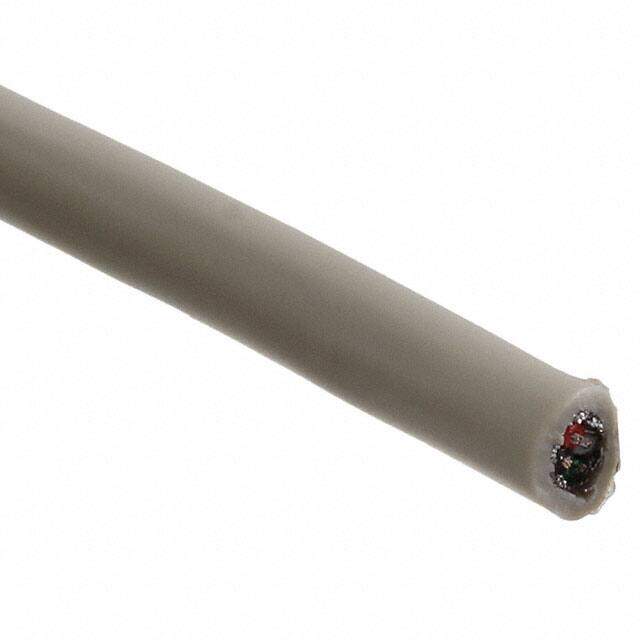

2725-2828-BE-01000-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 4COND 28AWG BGE SHLD 1000
PDF
/
Buying Options
Total Price: USD $8.62
Unit Price: USD $8.624
≥1 USD $8.624
≥10 USD $8.2104
≥100 USD $7.832
≥500 USD $7.32952
≥1000 USD $6.99468
≥3000 USD $6.6594
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2725
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0264 0.671mm
Length 1000.0' 304.8m
Technical
Shield Type Foil, Braid
Conductor Insulation High Density Polyethylene (HDPE), Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.150 (3.81mm)
Usage USB 2.0
Conductor Strand 7/0.0047
Jacket Color Beige
Cable Type Multi-Conductor
Voltage 30V
Wire Gauge 28 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature 80°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 18 Weeks
