9730 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

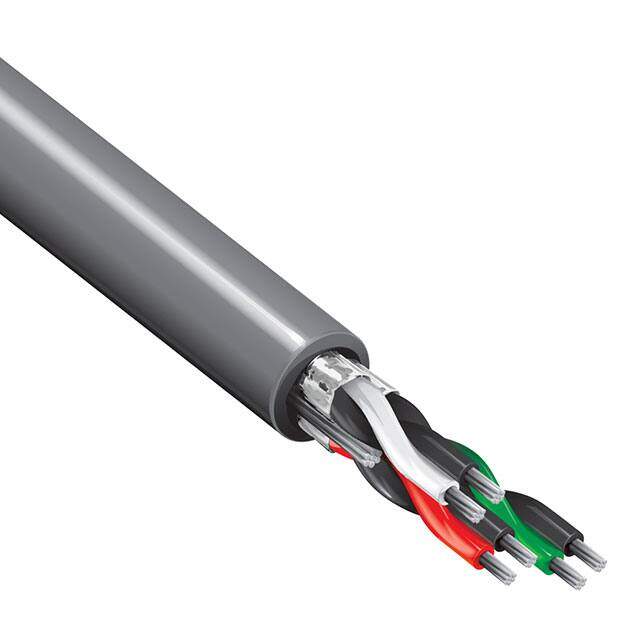

SHLD MULTIPR CABLE 3PR 100FT 300V CHR
PDF
/
Buying Options
Total Price: USD $588.8
Unit Price: USD $588.7992
≥1 USD $588.7992
≥10 USD $544.72
≥100 USD $525.8264
≥500 USD $513.232342
≥1000 USD $500.63728
Inventory: 71
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2011
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Conductors 6 (3 Pair Twisted)
Wire Gauge 24 AWG
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Chrome
Conductor Strand 7/32
Jacket (Insulation) Diameter 0.334 (8.48mm)
Conductor Insulation Foam Polyethylene (FPE)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0480 1.219mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2919
