9616 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

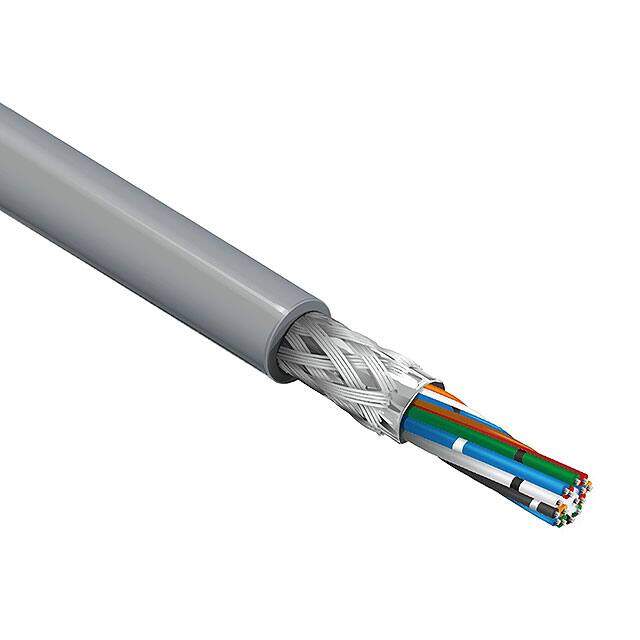

CABLE 15 COND 24AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $11.2
Unit Price: USD $11.202136
≥1 USD $11.202136
≥10 USD $10.748012
≥100 USD $10.369568
≥500 USD $9.991115
Inventory: 6630
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2464
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0350 0.889mm
Length 100.0' 30.5m
Technical
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Rated Voltage 300V
Shield Coverage 100%, 65%
Shield Type Foil, Braid
Rated Current 1.1A
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.302 (7.67mm)
Usage Computer
Conductor Strand 7/32
Jacket Color Chrome
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 24 AWG
Approval Agency UL
Number of Conductors 15
Construction STRANDED
Shielding YES
Resistance 0.082Ohm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2012
Packaging Spool
Operating Temperature -30°C~80°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material POLYVINYL CHLORIDE
Supply Chain
Factory Lead Time 7 Weeks
