9534 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

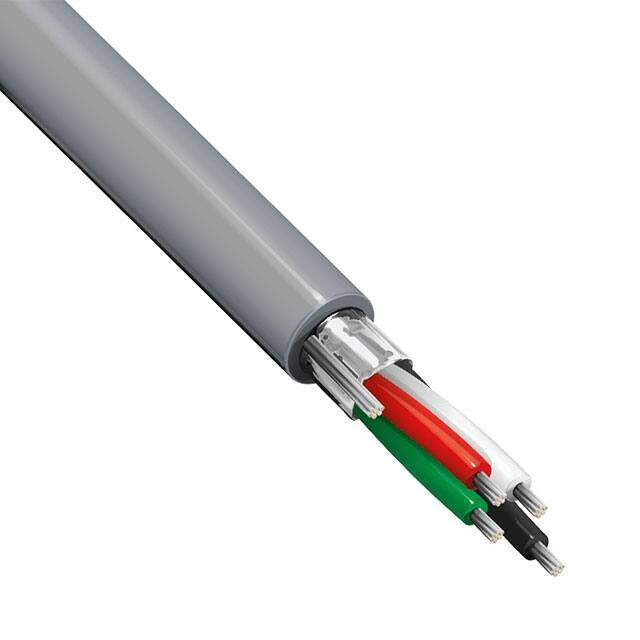

SHLD MULTICOND CABLE, 4COND, 24AWG, 100FT, 300V
PDF
/
Buying Options
Total Price: USD $134.6
Unit Price: USD $134.604962
≥1 USD $134.604962
≥10 USD $126.98581
≥100 USD $119.797935
≥500 USD $113.016921
≥1000 USD $106.619733
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Insulation Material POLYVINYL CHLORIDE
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -30°C~80°C
Packaging Spool
Published 2011
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 0.059Ohm
Shielding NO
Construction STRANDED
Number of Conductors 4
Approval Agency UL
Wire Gauge 24 AWG
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Chrome
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.184 (4.67mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Rated Current 1.75A
Shield Type Foil
Shield Coverage 100%
Rated Voltage 300V
Stranding 7X32
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
