9508 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

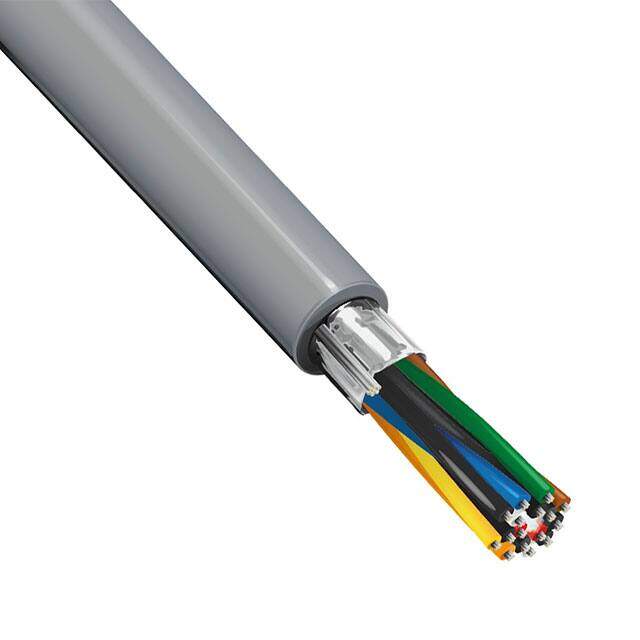

MULTI-PAIR 16COND 24AWG 100'
PDF
/
Buying Options
Total Price: USD $641.62
Unit Price: USD $641.6168
≥1 USD $641.6168
≥10 USD $593.58347
≥100 USD $572.99792
≥500 USD $559.272683
≥1000 USD $545.54896
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -30°C~80°C
Packaging Spool
Published 2005
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 16 (8 Pair Twisted)
Wire Gauge 24 AWG
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Chrome
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.324 (8.23mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
