9451 010U1000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

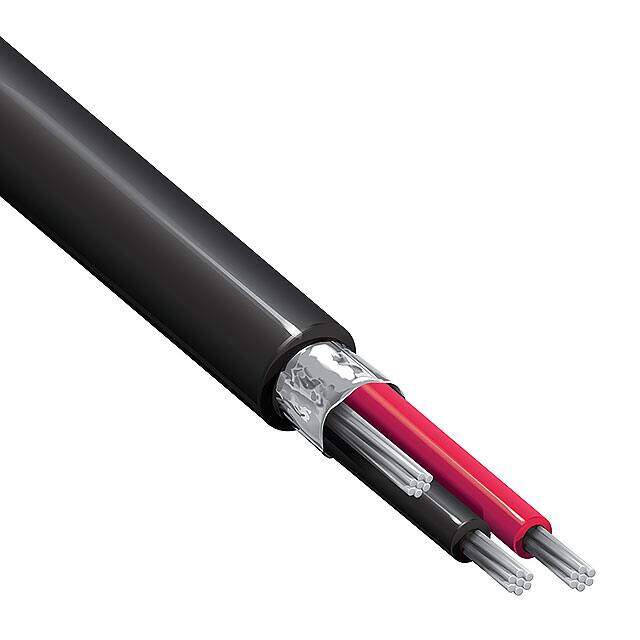

SHLD MULTIPR CABLE 1PR 1000FT 300V BLK
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.397998
≥1 USD $0.397998
≥10 USD $0.372319
≥100 USD $0.35435
≥500 USD $0.336371
≥1000 USD $0.33381
Inventory: 12073
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style CMR
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0200 0.508mm
Length 1000.0' 304.8m
Technical
Shield Coverage 100%
Shield Type Foil
Conductor Insulation Polypropylene (PP)
Jacket (Insulation) Diameter 0.135 (3.43mm)
Conductor Strand 7/30
Jacket Color Black
Cable Type Multi-Conductor
Wire Gauge 22 AWG
Number of Conductors 2 (1 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2012
Operating Temperature -20°C~75°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 3 Weeks
