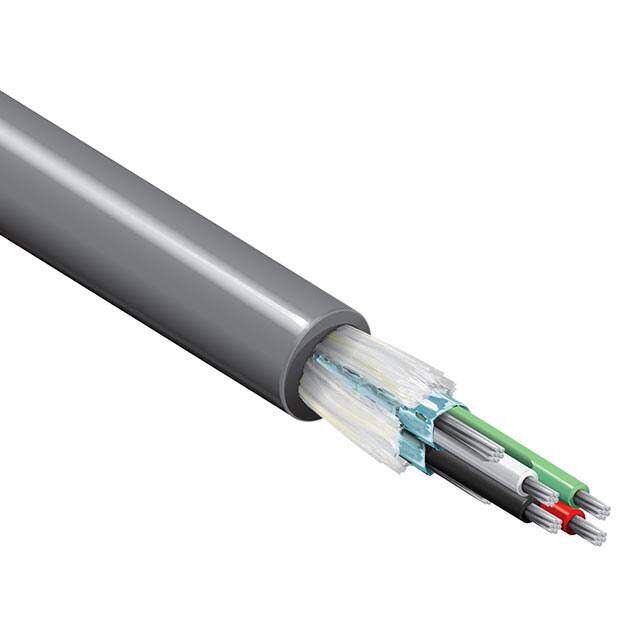

9402 060U500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
MULTI-PAIR 4COND 20AWG CHRM 500'
PDF
/
Buying Options
Total Price: USD $2339.35
Unit Price: USD $2339.348
≥1 USD $2339.348
≥10 USD $2164.20453
Inventory: 48
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~80°C
Published 2011
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4 (2 Pair Twisted)
Wire Gauge 20 AWG
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Chrome
Conductor Strand 7/28
Usage Audio, Control, Instrumentation
Jacket (Insulation) Diameter 0.300 (7.62mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0410 1.041mm
Compliance
RoHS Status ROHS3 Compliant
