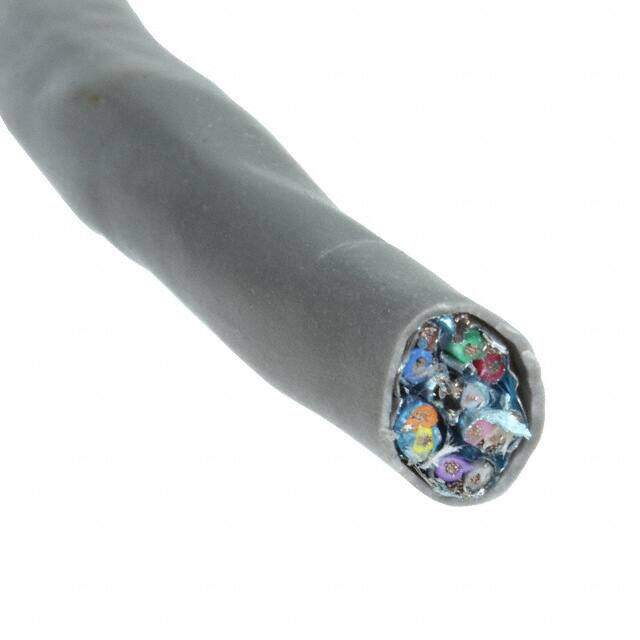

8778MN 008100

Belden Inc.
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 6PR IND SHLD 22AWG 100'
PDF
/
Buying Options
Total Price: USD $4.31
Unit Price: USD $4.314288
≥1 USD $4.314288
≥10 USD $4.120732
≥100 USD $3.98244
≥500 USD $3.844174
≥1000 USD $3.650583
Inventory: 410
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 3 Weeks

Physical

Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum

Technical

Operating Temperature -20°C~80°C
Packaging Spool
Published 2016
Series SpaceMaker?
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Conductors 12 (6 Pair Twisted)
Wire Gauge 22 AWG
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Gray
Conductor Strand 19/34
Usage Audio, Control, Instrumentation
Jacket (Insulation) Diameter 0.317 (8.05mm)
Conductor Insulation Polypropylene (PP)
Shield Type Foil
Shield Coverage 100%

Dimensions

Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0160 0.406mm

Compliance

RoHS Status ROHS3 Compliant
