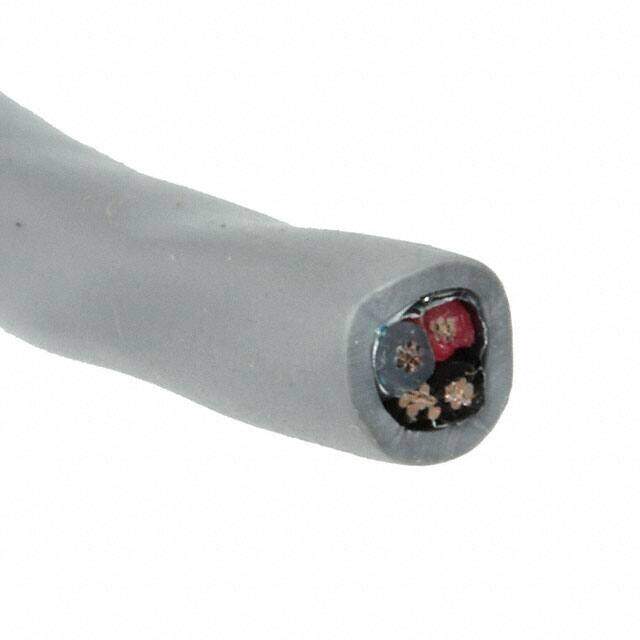

8771 060500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 3COND 22AWG SHLD
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.35997
≥1 USD $1.35997
≥10 USD $1.290678
Inventory: 2077
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~60°C
Packaging Spool
Published 2011
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Resistance 0.049Ohm
Shielding YES
Construction STRANDED
Reach Compliance Code compliant
Number of Conductors 3
Approval Agency UL
Wire Gauge 22 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Conductor
Jacket Color Chrome
Conductor Strand 7/30
Usage Audio, Control, Instrumentation
Jacket (Insulation) Diameter 0.199 (5.06mm)
Conductor Insulation Polyethylene (PE)
Rated Current 2.9A
Shield Type Foil
Shield Coverage 100%
Wire and Cable Name COMMUNICATION AND CONTROL CABLE
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0330 0.838mm
Compliance
RoHS Status RoHS Compliant
Ratings UL Style 2093
