8334 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

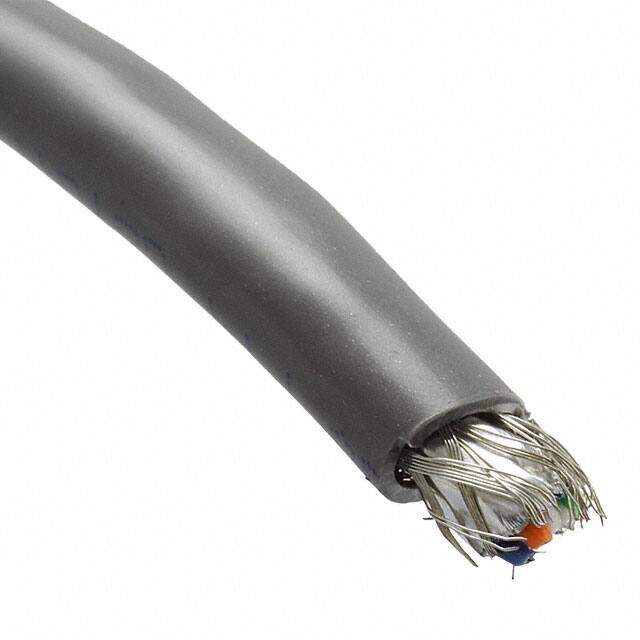

SHLD MULTIPR CABLE 4PR 100FT 300V CHR - More Details
PDF
/
Buying Options
Total Price: USD $4.28
Unit Price: USD $4.278648
≥1 USD $4.278648
≥10 USD $4.086676
≥100 USD $3.949554
≥500 USD $3.812424
≥1000 USD $3.620426
Inventory: 1392
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -30°C~80°C
Packaging Spool
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Conductors 8 (4 Pair)
Wire Gauge 24 AWG
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Chrome
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.272 (6.91mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0350 0.889mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2464
