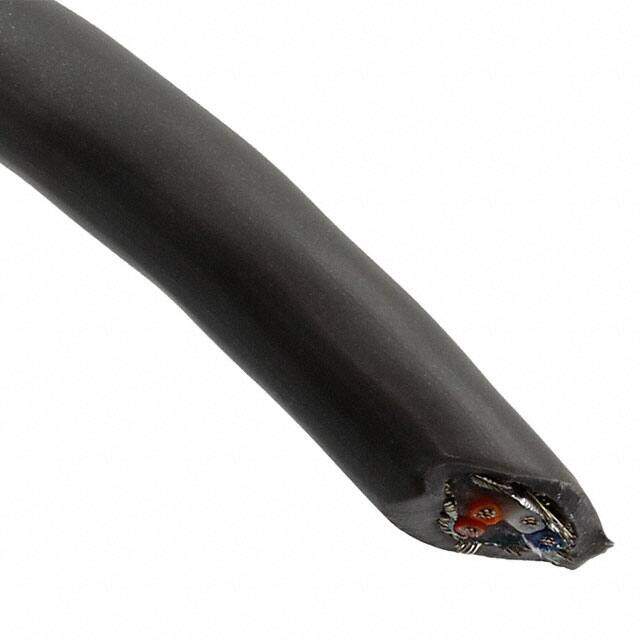

8332 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 4 COND 24AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $2.92
Unit Price: USD $2.923624
≥1 USD $2.923624
≥10 USD $2.81534
≥100 USD $2.707056
≥500 USD $2.598781
≥1000 USD $2.472448
≥3000 USD $2.346124
Inventory: 1263
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -30°C~80°C
Packaging Spool
Published 2011
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Conductors 4
Wire Gauge 24 AWG
Cable Type Multi-Pair
Jacket Color Chrome
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.250 (6.35mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0350 0.889mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2464
