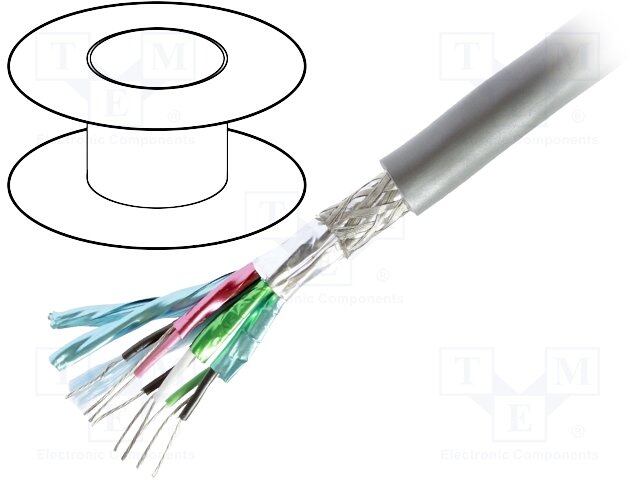

8170 060500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 10PR 24AWG SHLD
PDF
/
Inventory: 2762
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Insulation Material FPE
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -40°C~60°C
Packaging Spool
Published 2012
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Resistance 0.079Ohm
Shielding YES
Construction STRANDED
Reach Compliance Code compliant
Number of Conductors 20 (10 Pair Twisted)
Approval Agency CEC; CUL; NEC; UL
Wire Gauge 24 AWG
Voltage 300V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Chrome
Conductor Strand 7/32
Usage Computer
Jacket (Insulation) Diameter 0.584 (14.83mm)
Conductor Insulation Foam Polyethylene (FPE)
Rated Current 1.1A
Shield Type Foil, Braid
Shield Coverage 100%, 65%
Wire and Cable Name COMMUNICATION CABLE
Dimensions
Length 500.0' 152.4m
Jacket (Insulation) Thickness 0.0630 1.600mm
Compliance
RoHS Status RoHS Compliant
Ratings UL Style 2493
