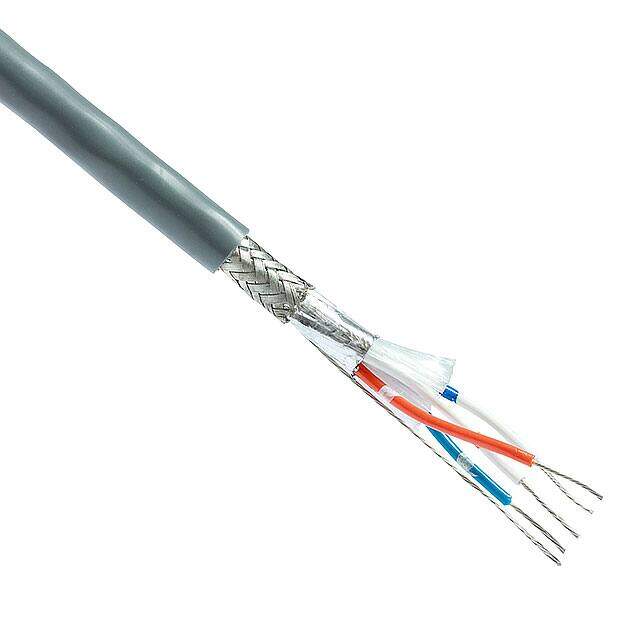

8162 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
SHLD MULTIPR CABLE 2PR 100FT 300V CHR
PDF
/
Buying Options
Total Price: USD $683.57
Unit Price: USD $683.5664
≥1 USD $683.5664
≥10 USD $632.3944
≥100 USD $610.46128
≥500 USD $595.8392
≥1000 USD $581.218
Inventory: 52
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 2493
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0480 1.219mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 65%
Shield Type Foil, Braid
Conductor Insulation Foam Polyethylene (FPE)
Jacket (Insulation) Diameter 0.343 (8.71mm)
Usage Computer
Conductor Strand 7/36
Jacket Color Chrome
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Wire Gauge 24 AWG
Number of Conductors 4 (2 Pair Twisted)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Drain Wire
Published 2011
Packaging Spool
Operating Temperature -40°C~60°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
